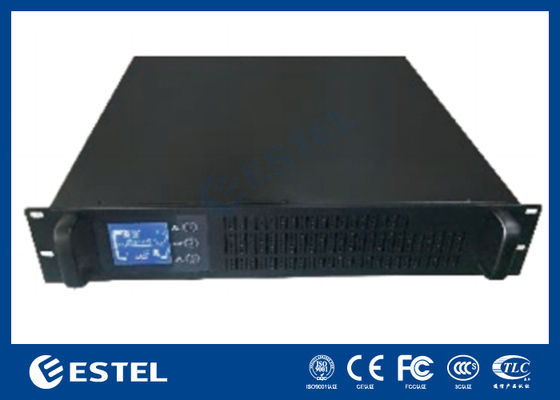

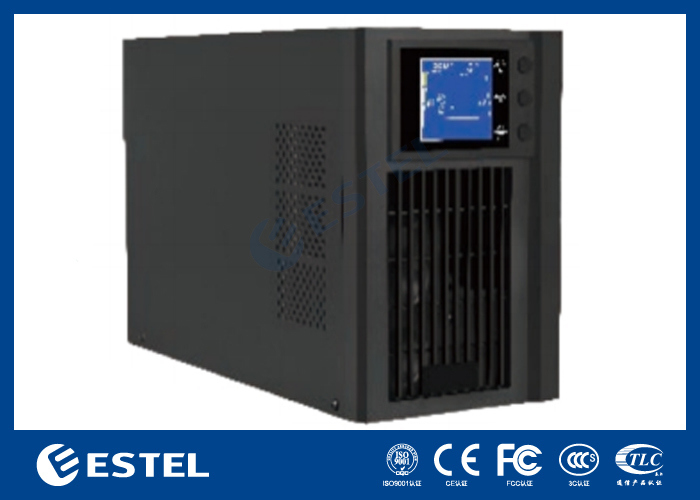

1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output
1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output 1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

Ampliación de imagen :  1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

Datos del producto:
Lugar de origen: Shenzhen, China (continente)
Nombre de la marca: ESTEL
Certificación: ISO9001, CE, 3C, FCC, TLC
Número de modelo: Entre 1 y 3 kVA
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: 358-2143 usd
Detalles de empaquetado: caja de cartón/madera
Tiempo de entrega: 7-10 días hábiles
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union
Capacidad de la fuente: 20,000 conjuntos por mes
Descripción detallada del producto
Rango de voltaje de entrada: 50% carga: 115-300 VCA; 100% carga: 160-280 VCA Rango de frecuencia de entrada: 40 Hz a 70 Hz
Factor de potencia: ≥0,99 (100% de carga) Exactitud de la estabilización del voltaje: ± 1%
Voltaje de salida: 208 VCA @ 220 VCA @ 230 VCA @ 240 VCA Frecuencia de salida: 50 Hz ± 0,25 Hz, 60 Hz ± 0,25 Hz
Resaltar:

1-3kVA UPS single-phase input

,

UPS single-phase output power supply

,

uninterruptible power supply with warranty

Uninterruptible Power Supply(UPS)



Product Overview



ESTEL 1-3kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it delivers pure sine wave output with exceptional performance and a high-end appearance,it presents the perfect integration of cutting-edge technology and traditional products.



Product Features

  • Advanced DSP digital controltechnology,ensures more stable performance and superior quality;
  • Output power factoris 0.8, aligning with the evolving trends of power consuming equipment and providing stronger load capacity;
  • Active input powerfactor correction(PFC), achieving an input power factor of up to 0.98 or higher;
  • Wide input voltage range and frequency range, capable of adapting to areas with extremely harsh power conditions,including remote regions;
  • Compatible with generator;
  • Zero switching time, effectively ensuring the safety and reliability of load
UPS Capacity 1K 1KL 2K 2KL 3K 3KL
Rated Output Capacity 1kVA/0.8kW 2KVA/1.6kW 3KVA/2.4kW

AC Input

Input Voltage Range 50%load:115-300VAC;100%load:160-280VAC
Input Frequency Range 40Hz-70Hz
Power Factor ≥0.99(100%load)





Battery lnput

Battery Pack Voltage 24V 36V 48V 72V 72V 96V
Battery Mode Built-in External Built-in External Built-in External
Charging Voltage 27.4VDC 41.3VDC 54.7VDC 82.1VDC 82.1VDC 109.4VDC
Charging Current 1A 6A(max) 1A 6A(max) 1A 6A(max)
Battery Charging Time Built-in batteries:5hrs to 90%;External batteries:depends on battery pack capacity











AC Output

Voltage Stabilization Accuracy ±1%
Output Voltage 208VAC @220VAC@230VAC@240VAC
Output Frequency 50Hz±0.25Hz,60Hz±0.25Hz
Waveform Linear load:Sine wave,THD<3%;Non-linear load:Sine wave,THD<8%;
Output Power Factor 0.8
Overload Capability AC Mode 100%-110%:10min;110%-130%:1min;>130%:1sec
Battery Mode 100%-110%:30sec;110%-130%:10sec;>130%:1sec
Output Current Peak Coeficient 3:1
Inverter Bypass 4ms(Typical)
Mains and battery switch time 0ms
Efficiency AC Mode 88% 89% 90%
Battery Mode 83% 87% 88%
Communication and Monitoring

RS232(can convert to RS485);Smart card slot(can expand with multiple

monitoring modes,via SNMP,mobile phone text message,etc.)

Tower Type Weight (kg) 8 4.5 16.5 6.8 28 11.5
Size(D×W×H)(mm) 280×145×225 400×145×225 433×190×318



Rack Type

Weight(kg) 10.5 7 18 8 24.5 8.7

Weight

(kg)

External battery type 420×440×85 420×440×85 420×440×85
Built-in battery type 420×440×85 590×440×85 590×440×85
